ecoLINE · 250 kN
7072C travelling head cutting machine
Hydraulic Crosshead Cutting Machine in a steel welded construction for single-layer and multi-layer cutting
Designed in a steel welded construction. The punching head movement is motorized. The hydraulic unit with pump and motor is under the machine frame.
The operation unit for the movement of the punching head and the triggering of the machine is at the punching head.
Technical details
| Type | 7072C |
|---|---|
| Cutting force | 250kN |
| Dimensions | 2225 x 2100 x 1450 mm |
| Table surface | 1600 x 500 mm |
| Passage width | 1700 mm |
| Pressure plate | 500 x 500 mm |
| Cutting plate size | 1600 x 500 mm |
| Cutting stroke | 15 - 50 mm |
| Weight | 1600 kg |
7072C – Universally applicable manual travelling-head cutting machine
More machines in this series
Contact Us
schoen + sandt Hungary Kft.
H-3300 Eger, Kistályai köz 1.
Registry nr.: 10-09-020826
VAT nr.: 11160799-2-10
EU VAT nr.: HU 11160799
More machines in this line

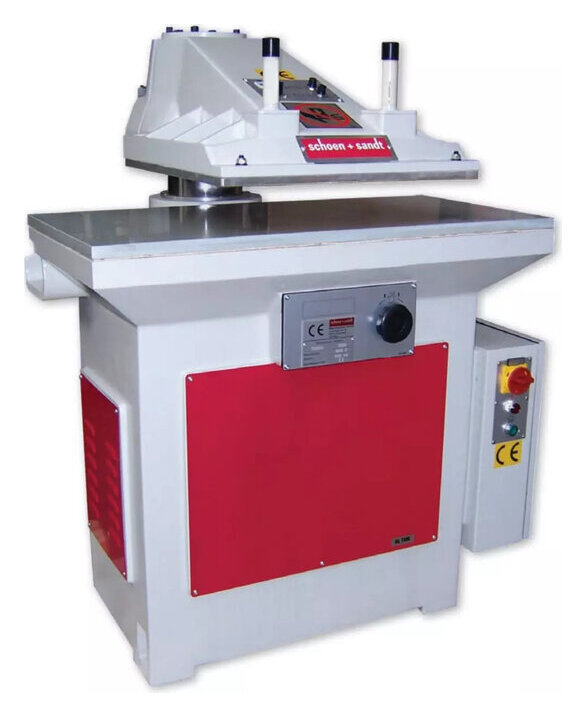

1028C swing arm cutting machine
