proCUT 5300 lift table cutting machine
Universally applicable cutting machine with outlying stop blocks and a receding beam. The proCUT 5300 is the lift-table model of the proLINE range: built for precise, automated series production and available in three cutting-force versions.
Features
- Solid welded steel construction
- 4 meachnical low point limits, automatically adjustable, adjusting accuracy 0,1 mm
- Stroke movement and the cutting force provided via two hydraulic cylinders, arranged in the machine base
- Up-stroke table guided by means of a centralized column guidance
- Beam travel is powered by a motoric driven swivel lever, therefore harmonic travel motionk
- electric control cabinet mounted to one side of the machine
- Operator’s panel to control all movements and functions as well as all electric operating and control elements arranged on the front side of control cabinet
- Preselect stroke counter
- Total stroke counter
- Safety light curtain for protection and cutting stroke release
- Cutting stroke release selective via 1-cycle resp. 2-cycle operation or via a push button
- Siemens S7 PLC controls the various machine movements
- Easy menu-guided operating
- Clear text message and trouble line
- Trunk diagnosis via VPN to minimize trouble fault times
- Cutting stroke relase with foot switch
- Cutting die storage for different cutting die heights
- Plastic cutting board
- Automatic cutting Board Oscillatione
- Stationary cutting die holding brackets, Angle rails mounted underneath the beam
- Adjustable cutting die holding brackets, easily moveable under the beam to the corresponding cutting die width
- Central manuel cutting die clamping device
- Operator’s lamp
- Dust protection
- Trilingual human machine interface
- Increased daylight
- Cross laser
Available table sizes
| Table size | 1200mm x 800mm | 1600mm x 800mm | 1700mm x 1050mm |
|---|---|---|---|
| Cutting force | 630 kN | 800 kN | 1000 kN |
Technical details
| Daylight in mm (more possible) | 190 |
|---|---|
| Adj. return stroke in mm | 15 - 165 |
Technical details
| Type | 5300/120.80/63 | 5300/160.80/80 | 5300/170.105/100 |
|---|---|---|---|
| Cutting in kN | 630 | 800 | 1000 |
| Cutting area in mm | 1200 x 800 | 1600 x 800 | 1700 x 1050 |
| Cutting speed closing in mm/s | 119 | 87 | 91 |
| Cutting speed in mm/s | 41* 6,4* | 36* 4,7** | 33* 5,5** |
| Cutting speed return in mm/s | 52 | 52 | 52 |
| Beam travel time in sec | 1,6 | 1,6 | 1,6 |
| Motordrive in kW | 5,5 | 5,5 | 5,5 |
| Oilrequirement in L. | 120 | 150 | 200 |
| Machine weight in kg | 4000 | 5100 | 6700 |
proCUT 5300 – Rigid welded steel construction, outlying stop blocks and receding beam
More machines in this series
- proCUT 6005 bridge cutting machine
- 5230 lift table cutting machine
- 2062 travelling head cutting machine
- 7320 roller cutting machine
Contact Us
schoen + sandt Hungary Kft.
H-3300 Eger, Kistályai köz 1.
Registry nr.: 10-09-020826
VAT nr.: 11160799-2-10
EU VAT nr.: HU 11160799
Machine highlights

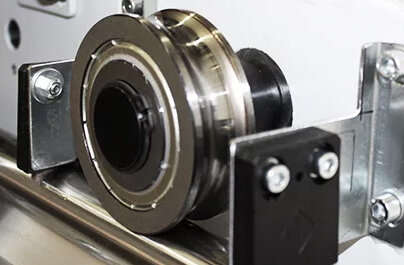

PREMIUM LONGLIFE rollers
Designed with optimum raceway geometry

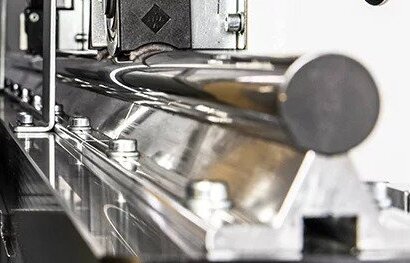

Optimized sliding and guiding rails
Induction-hardened for extreme long shelf life

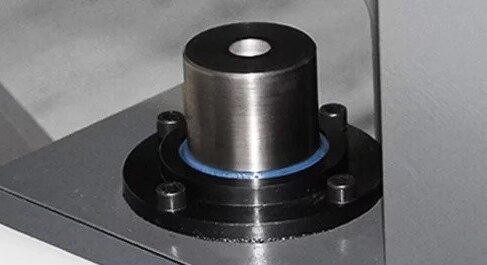

Outlying stop blocks
For optimal utilization of the cutting area

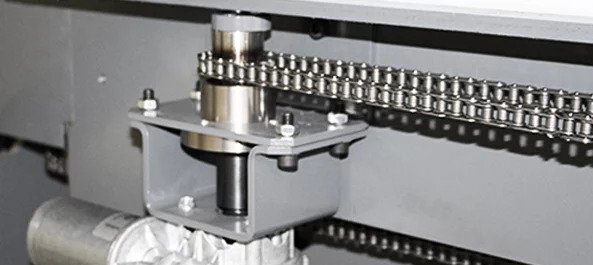

Cutting board oscillation unit
Motor driven cutting board oscillation unit without air connection

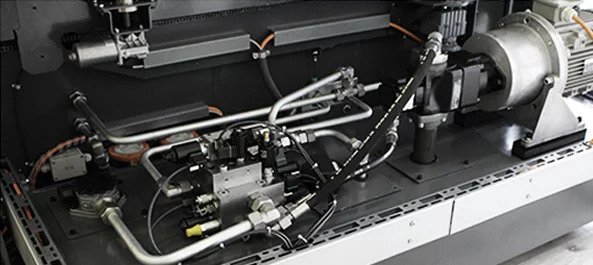

External hydraulic unit
Easy to maintain, easily accessible and selectable between Servo or conventional hydraulics

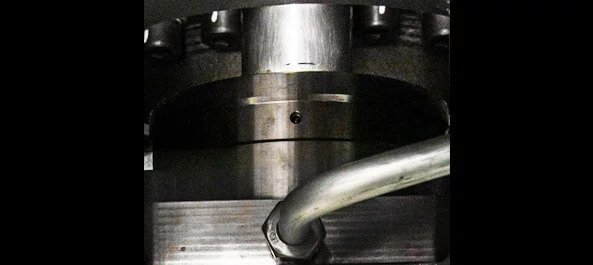

Optimized hydraulic cylinders
Simple, easy and quick seal change - Maintenance-friendly
