proCUT 6005 bridge cutting machine
Universally applicable cutting machine in a rigid welded steel construction with a receding beam. The proCUT 6005 is the high-force beam model of the proLINE range — built for fast, precise cutting of large-area materials.
Features
- Welded steel construction with 4 columns and receding beam
- With mechanical synchronization for maintaining plane-parallelism between beam and base
- Without central lubrication, with self-lubricating bushings
- The beam travel is powered by an electric motor
- The beam return travel distance is infinitely variable
- The oil-tight welded hydraulic power unit is installed at the rear side of the cutting machine
- The electric control cabinet is mounted to one side of the machine
- The operator’s panel and all electric operating and control elements are arranged on the front side of the control cabinet
- A “Siemens S7” PLC controls the various movements
- Trilingual operator’s guidance via clear text error display
- Preselect stroke counter
- Total stroke counter
- Automatic adjustment to the cutting die height
- Safety light curtain for protection and cutting stroke release
- Cutting stroke release selective via 1-cycle resp. 2-cycle operation or via a push button
- Protective guarding in accordance with the European Standards
- VPN for quick response, long distance technical diagnosis and remote maintance
- 4 mechanical low point limits, automatically adjustable, adjusting accuracy 0,05 mm
- New differential hydraulic
- Mechanical synchronized speed for parallel cutting even under off-center load
- Automatic adjustment of cutting die height
- PLC with touch panel and clear text error indication
- Remote diagnosis and maintenance via VPN to significantly minimize downtime in the event of a malfunction
- Remote diagnosis and remote maintenance via VPN to significantly minimize downtime in the event of a malfunction
Available table sizes
| Table size | 2060 mm x 1050 mm | 2060 mm x 1250 mm | 2060 mm x 1250 mm |
|---|---|---|---|
| Cutting force | 1250 kN | 1250 kN | 1600 kN |
Technical details
| Daylight in mm (more possible) | 185 |
|---|---|
| Adj. return stroke in mm | 15 - 160 |
Technical details
| Type | 6005/ 206.105/125 | 6005/ 206.125/125 | 6005/ 206.125/160 |
|---|---|---|---|
| Cutting in kN | 1250 | 1250 | 1600 |
| Cutting area in mm | 2060 x 1050 | 2060 x 1050 | 2060 x 1050 |
| Machine weight in kg | 10.000 | 10.500 | 15.000 |
| Oilrequirement in L. | 250 | 250 | 250 |
proCUT 6005 – Rigid welded steel construction and receding beam
More machines in this series
- proCUT 5300 lift table cutting machine
- 5230 lift table cutting machine
- 2062 travelling head cutting machine
- 7320 roller cutting machine
Contact Us
schoen + sandt Hungary Kft.
H-3300 Eger, Kistályai köz 1.
Registry nr.: 10-09-020826
VAT nr.: 11160799-2-10
EU VAT nr.: HU 11160799
Machine highlights

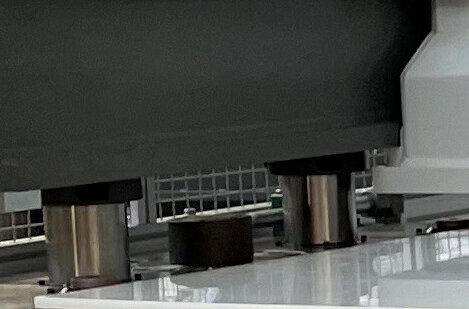

NEW: Cutting force up to 1600 kN
Enhanced cutting length per stroke

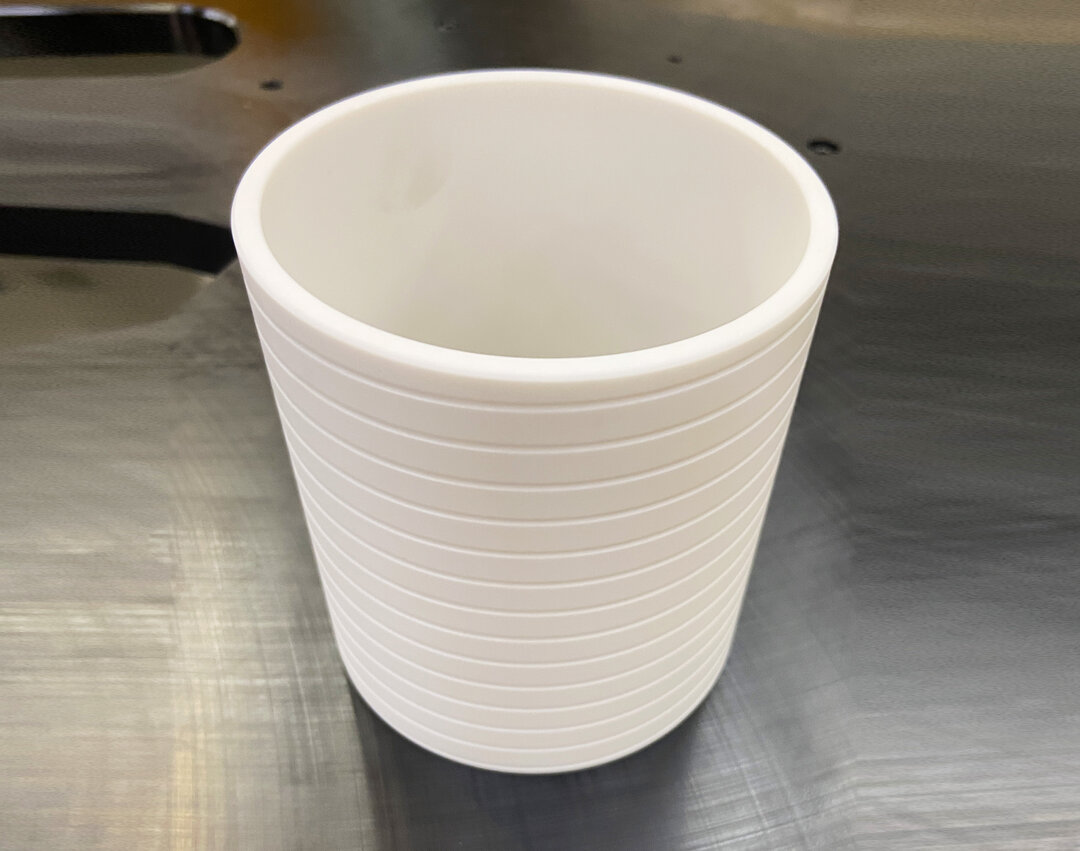

PREMIUM LONGLIFE bushings
Less maintenance and cleaning
Extension for the position stops
No time lost due to adapter assembly

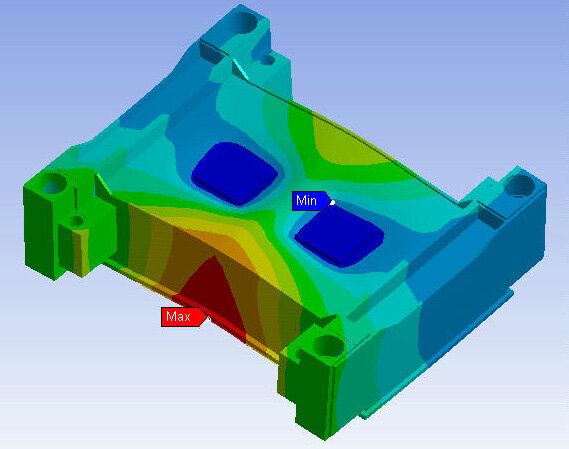

KISS-cutting
Extremely dimensionally stable beam enables cutting against steel
Optimized hydraulic cylinder
Less pressure on the components and easy and fast seal change
Servo technology (optional)
The cutting machine motor only runs during actual cutting process. This ensures lower oil and energy consumption and significant reduction of tool wear and noise emissions
